| Technical Data |
: |
Rubber insulation acc. to IEC 60245-4 |
| Temperature Range |
: |
30°C to + 60°C |
| Permissible Operating Temperature |
: |
at conductor + 60°C |
| Nominal voltage |
: |
Uo/U = 300/500 V |
| Maximum Operating Voltage |
: |
- Three-phase and one phase a.c Uo/U = 318/550 V |
| |
|
- Direct current-system Uo/U = 413/825 V |
| Test Voltage |
: |
2000 V |
| Minimum bending radius |
: |
- Approx 7.5 x cable |
| Behaviour in fire |
: |
acc. to IEC 60332-1 |
| |
|
- Ozone-resistant, oils and fat are allowed to come in touch |

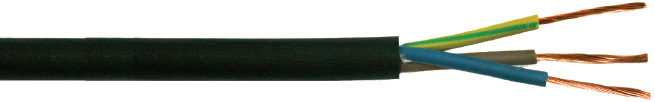

| Cable Construction |
: |
- Bare or tinned copper conductors, fine stranded IEC 60228 cl. 5 |
| |
|
- Rubber Core Insulation |
| |
|
- Cores colour coded to DIN VDE 0293 |
| |
|
- Outer jacket black |
| |
|
- Resistant to ozone and oils and fats are allowed to come in touch |
| |
|
- Behaviour in fire according to IEC 60332-1B |
| Application |
: |
H05RN-F is suitable for connecting electrical equipment with low mechanical |
| |
|
stress in dry, damp and wet areas as well as in the open. These cables are |
| |
|
resistant to fat and oils and are also suitable for fixed installation. The installation |
| |
|
in hazardous areas is allowed H05RR-F is suitable for connecting electrical appliances. |
| |
|
Also suitable for medium mechanical stress in households and offices and fixed |
| |
|
installation in prefabricated building parts. For use in the open for short time, |
| |
|
industries or agriculture plants and for connecting commercial electrical tools. |
| Note |
: |
G = with green-yellow earth core |
| |
|
X = without green-yellow earth core |
