Cable Drums

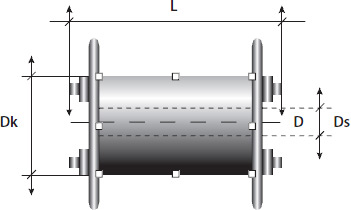

Cable drums carrying capacity, size, weight and volume


Drum
Type
Size

Ds (mm) Dk (mm) L (mm) D (mm)
Carrying
Capacity
(kg)
Weight
Empty
(a)		 Closed %50 (b) Total
%50 (a+b)		 Closed %50(a+b) Total
%50 (a+c)
Volume
(m³)
70 700
 350
 515 85 500
 23
 7 30
14
 37
 0,25
80 800 400 515 85 650 36 8 44 16 52 0,33
90 900
 450 665 85 800 50 11 61 22 72 0,54
100 1000 500 665 85 1000 60 125 75 30 90 0,67
110 1100 550 667 85 1200 75
 16 91 32 107 0,82
120 1200 600 840 85 1400 90 17 107 34 124 1,21
130 1300
 600 840 85 1600 100 19 119 38 138 1,42
140 1400
 700 840 85 1800 115 20 135 40 155 1,65
150 1500 700 840 85 2000 150 23 173 46 196 1,89
160 1600 800 1080 180 2500 210 25 135 50 260 2,76
180 1800 1000 1080 180 2800 70 30 300 60 330 3,5
200 2000 1200 1080 180 3500 350 35 385 70 420 4,32
210 2100 1200 1080 180 3700 380 38 418 76
 456 4,76
220 2200 1400 1360 180 4000 420 40 460 80 500 6,58
230 2300 1400 1360 180 4500 450 45 495 90 540 7,19
240 2400 1500 1360 180 5000 480 48 528 96 576 7,83
250 2500 1500 1360 180 5500 550 52 602 104 654 8,5
260 2600 1600 1360 180 6000 650 55 705 110 760 9,19
280 2800 1800 1635 180 7500 850 80 930 160 1010 12,82
290 2900 2000 1865 180 8000 1000 90 1090 180 1180 15,68
